General Description

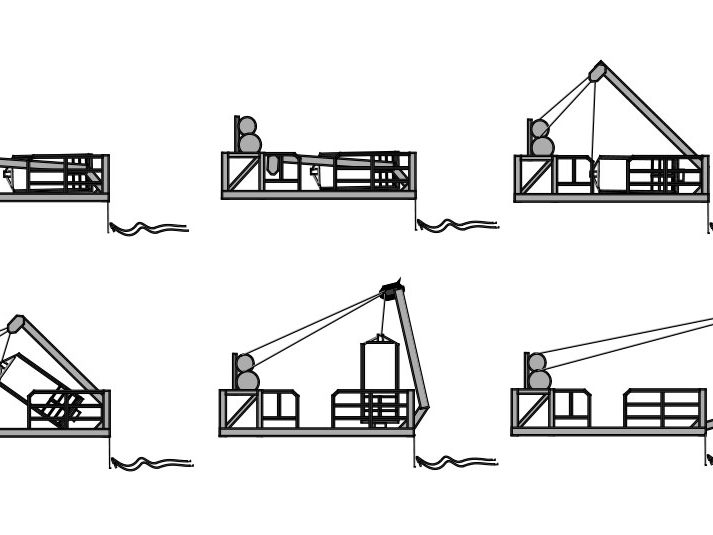

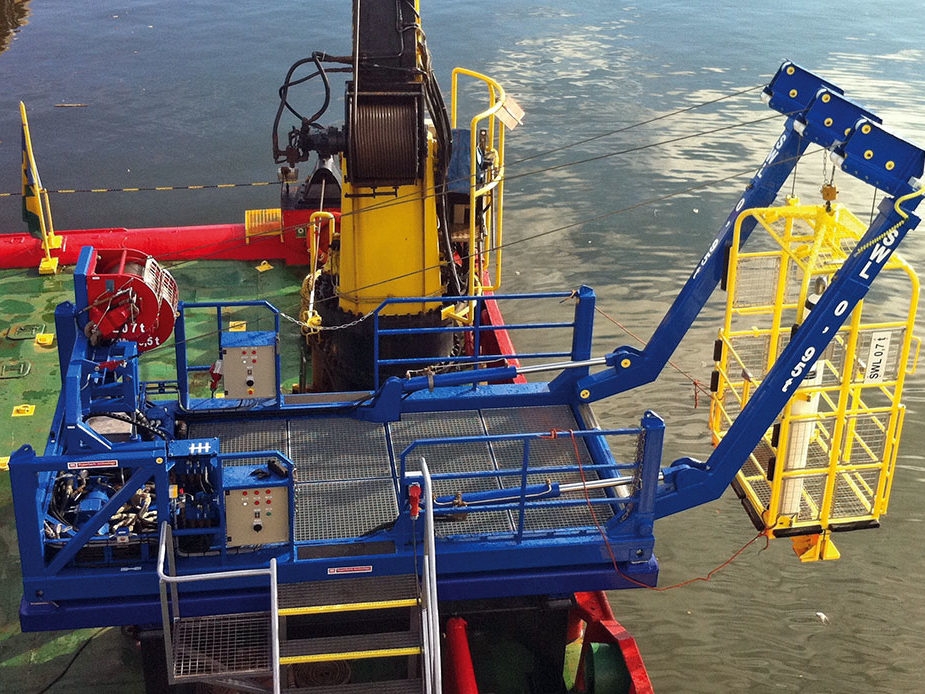

The portable launch and recovery system with two lifting winches, hydraulically powered, is designed to handle a dive cage with 2 divers with 2 air bottles of 50 liters. The lifting height is 100 meters. The LARS with cage & clump is a self containerized unit on a 20 ft. long footprint. The system is easy to transport because of the small dimensions and a total weight of only 4,2 metric tons. The system can be transported in a 20 ft. ISO container. The function of the clump weight is to keep the dive basket straight and steady under water. In case of an emergency or breakdown of the wet bell winch, the clump winch can raise the manned cage. The winches are located within the base frame and each man-rider winch is equipped with a triple braking system.

Technical Data

Total weight 4200 kg
Maximum SWL LARS 940 kg (clump, cage, 2 divers, tools, bottles)
Duty factor 1.2
Hoisting factor 1.7
Offlead/ Slidelead 10° / 10°
Operating temparature -20°C till 50°C
Lifting speed 0.25 m/s ( IMCA Requirement)
Lifting height 100 meter
Power required 440 VAC-3Ph + PE, 32 A
Certification Society Lloyd‘s Register
Design Standard IMCA D023
Type Multipurpose vessel / research-, diving vessel
Year of Built 1978
Yard Voldnes Skipsverft Nybygg Norway
Port of Registry Rostock
Flag Germany
Call Sign DECT2
Certification Fahrterlaubnis See – BG A2
IMO – Nummer 9096387
GT 146 t
SAT Telephone +87 077 – 3160304
Mobile +49 172 – 3838112
Length o. a.: 29.00 m
Beam o. a.: 6.70 m
Draught: 2.80 m
Manufacturer MWM
Type TBD 601
Output 530 HP
Speed max 12 kn
Loading crane HAT, 1t at 4m jib
