General Description

The 20 foot Offshore Diving Container has been built in accordance with IMCA design for surface oriented (air) diving systems. The ODC is equipped with a 3 persons dive panel (2 divers one rescue diver).

Technical Data

CONTAINER SPECIFICATION
Size 20 ft. ISO Certified container
Isolation Fire retardant isolation with thermal protection
Design Container divided with separation wall in two sections: 1. Dive control with storage for umbilicals, helmets etc. 2. Compressor room and gas storage
Weight 7000 kg

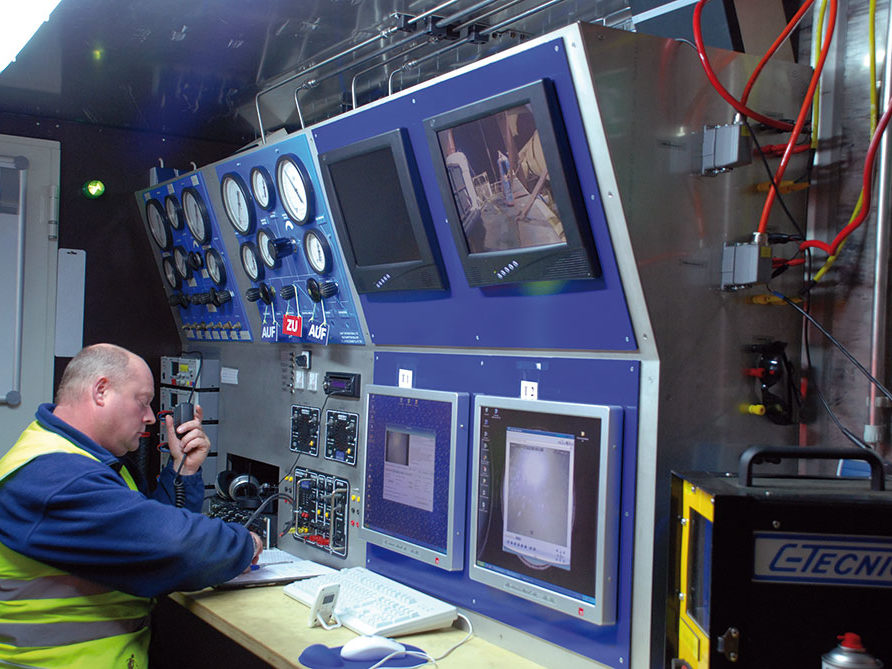

DIVE CONTROL

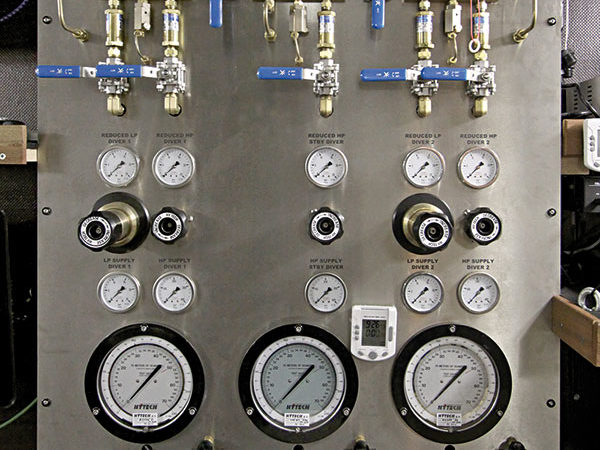

Dive panel LR certified diving panel for 3 divers
Communication 2 x AMCOM 2810 A; 1 x AMCOM 2825 A
Video system Video control system
Light system 6 x Voltkraft light control system
DVD 3 x Panasonic hard disk DVD units
Deck camera Deck camera unit
Deck communication Hard wire deck communication
O2 Analysers Hytech O2 analysers
DIVE EQUIPMENT
Umbilical 3 x 150 m Fibron Umbilicals
Dive Helmet 3 x Kirby Morgan 27 Helmets
POWER SUPPLY
The container can be operated directly from the public power grid or a mobile generator. The container has 2 independent power feeds with the following specification:
Voltage 3 x 400 V
Amperage Fire retardant isolation with thermal protection
Design 32 A, each
Weight 7000 kg
Frequency 50 Hz
GAS SUPPLY

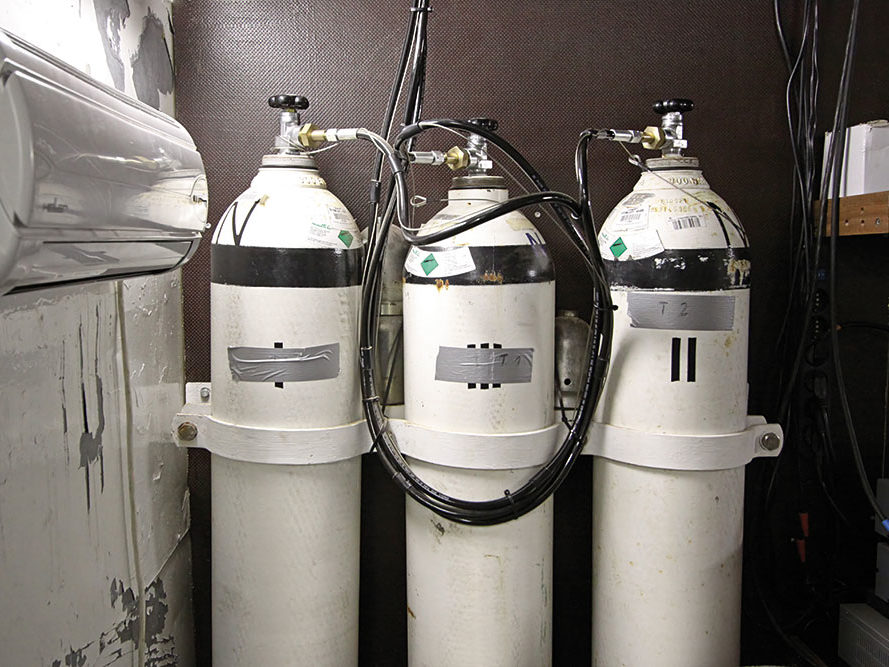

HP Bottles 6 x 50 L 200 bar, in separate compressor room

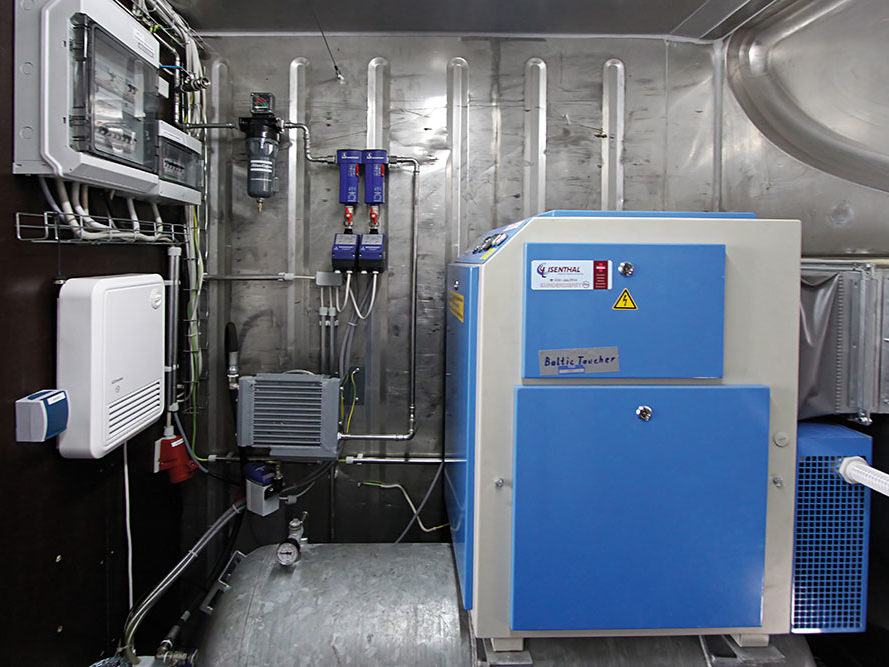

HP Compressor 225 bar type LW 160E
LP Compressor 16 bar type RS4
CSC Approval D-HH-0214/GL2567
Classification Society Lloyd’s Register
Certificate no ROT 0910986
Design Standard IMCA D023
Planned Maintenance System IMCA D018
